LSC14250 Lithium Supercapacitor Cell with Fully Sealed Structure and Wide Operating Temperature for High Energy Density Applications

Nominal Capacity(3.67V) : 216AS

Nominal Voltage : 3.67V

Product System : Lithium Super-Capacitor Cell

Operating Temperature : ﹣40℃～+85℃

Applications : Intelligent and Instrument Area, Remote/Wireless, Intelligent Fire Control System

Weight : About 11g

Internal Resistance : ≤250mΩ

Model Number : LSC14250

Certification : CE, ROHS, UN38.3

Place of Origin : Wuhan

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C,D/A,D/P,T/T

Supply Ability : 10000PCS/30Days

Delivery Time : 20 Days

Packaging Details : Carton

Contact Now

Remote / Wireless LSC14250 Lithium Supercapacitor Cell Fully Sealed Structure

Product Overview

LSC14250 Lithium Ion Battery Lithium Super-Capacitor Cell Lithium Super Capacitor Lithium Ion Secondary Battery

The Lithium super capacitor is a composite super-capacitor fabricated by hybrid lithium ion secondary batteries electrode materials, including graphite, lithium cobalt oxide, lithium iron phosphate, and metal oxides, with an activated porous carbon with high specific surface area. Due to the addition of lithium-ion batteries electrode materials, the energy storage mechanism of the composite super-capacitors is no longer the traditional non-faradic double-layer charge storage mechanism. This design demonstrates higher energy density than a traditional double-layer capacitor, and higher power density than a rechargeable battery, while ensuring high energy, high power and long cycle life.

Product Features

Hybrid lithium ion secondary batteries electrode materials
Higher energy density than traditional double-layer capacitors
Higher power density than rechargeable batteries
Long cycle life with high energy and power capabilities

Performance Data

Product System	Lithium Super-Capacitor Cell
Model	LSC14250
Nominal Capacity (3.67V)	216AS
Nominal Voltage	3.67V
Internal Resistance	≤250mΩ
Max. Continuous Discharge Current	800mA
Max. Pulse Current	2600mA
Max. Charge Current	60mA
Max. Charge Voltage	4.0V
Discharge End Voltage	2.5V
Operating Temperature	﹣40℃～+85℃
Weight	About 11g

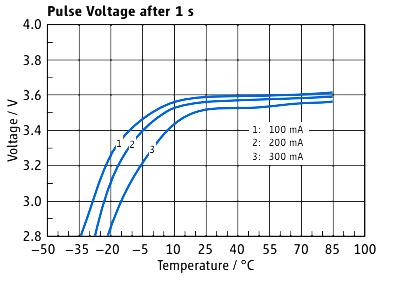

Characteristic Curves

LSC14250 Lithium Supercapacitor Cell with Fully Sealed Structure and Wide Operating Temperature for High Energy Density Applications

Key Advantages

Instantaneous large current discharge capability
Long-life energy storage device
Fully sealed structure and wide working temperature range
Suitable for long-term use in harsh environments
